Details Description

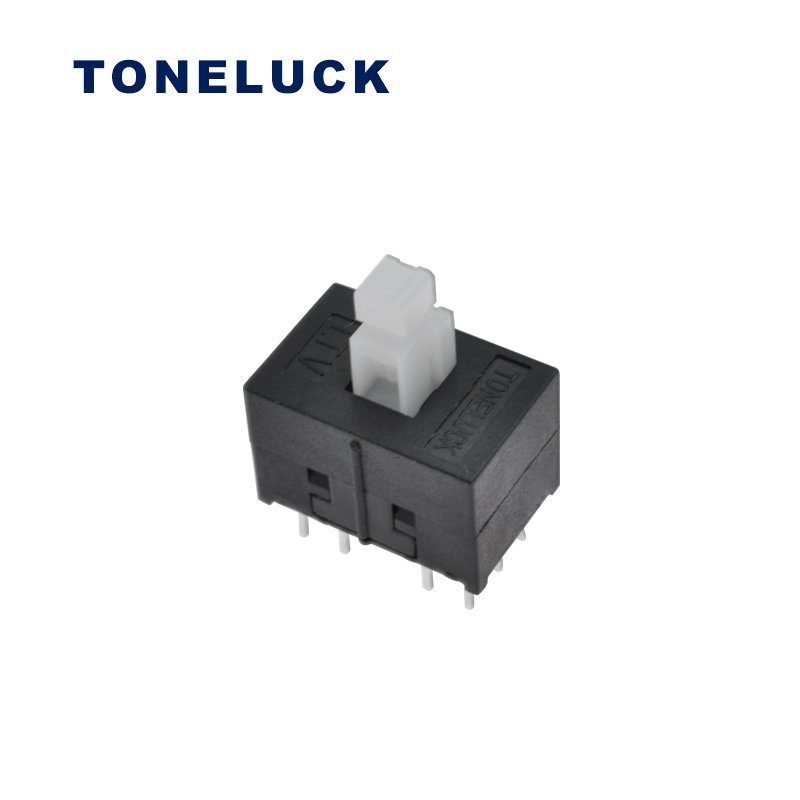

The LTV-87S0N6B-BS is a square pushbutton switch with small electricity in 0.1A 30VDC, which is the momentary no latching function. Meanwhile, it has 6 straight-type PCB terminals which can be installed on the circuit board. What’s more, the actuator height is 6.5mm but if you need the cap, we will accessory the BF keycap series.
Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
