4 Pin Push Button Switch Description

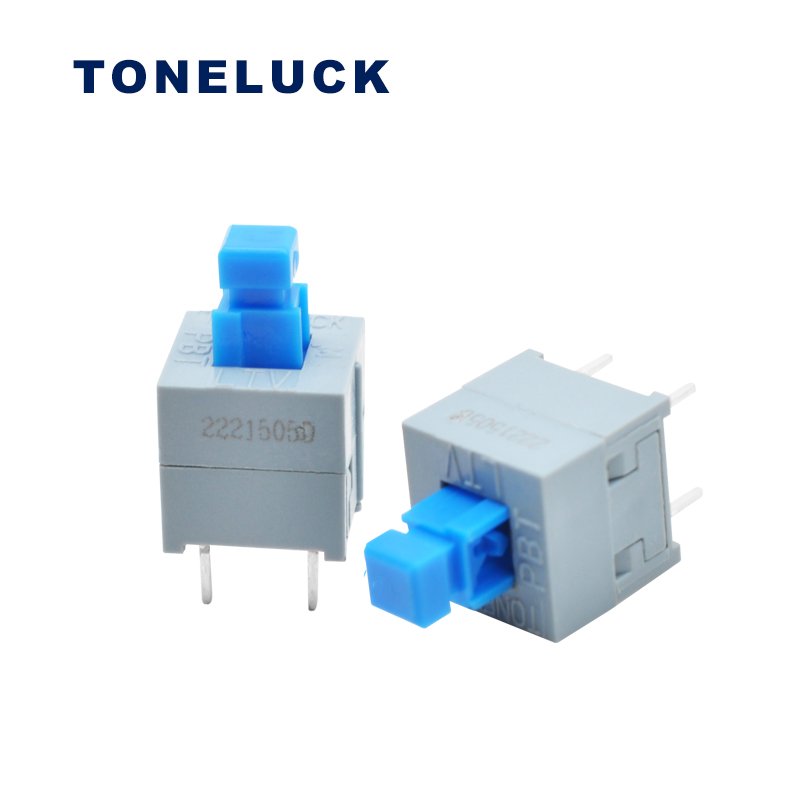

The LTV-76NN5.7B-CS is a momentary 4-pin push button switch, which is high-quality and long life. Its rating is 0.10A 30VDC 100,000 cycles & 1.00A 13VDC 20,000 cycles and its shell material is the UL94 V-0 which is the high-level fire rating material. We welcome you to test our sample quality!

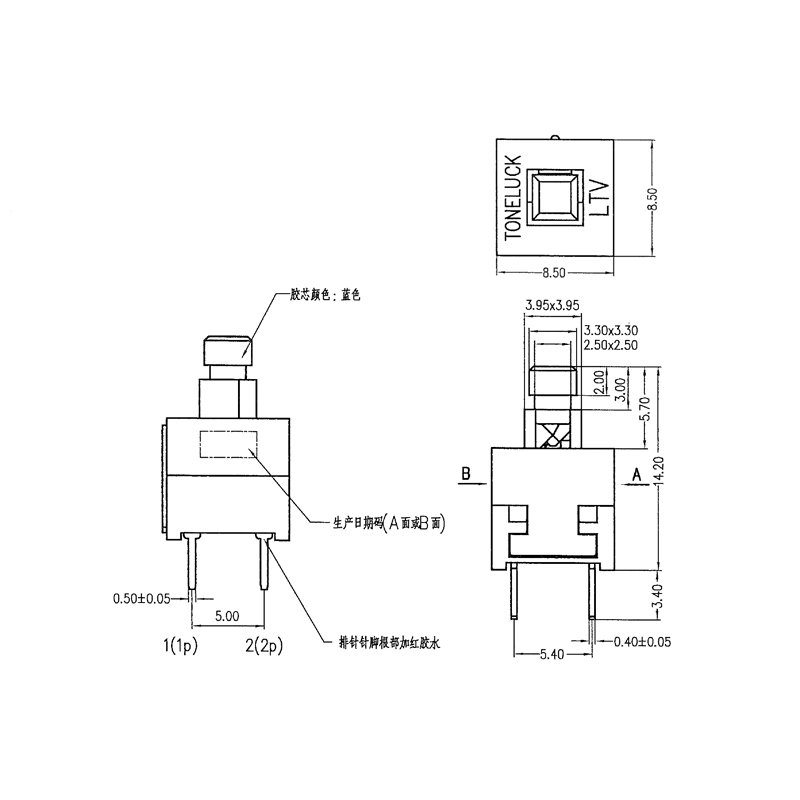

Meanwhile, the model is also small in size, its length is 8.5mm so you can install it in a small space. This model is the momentary type without latching, I mean it will reset automatically when you release it. However, if you need the self-lock type, it is also available as optional.
Besides, our push button switch also has caps for fittings. For example, we have the round and square key caps for choice, welcome to contact us to have more details.
LTV Mini Push Button Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
