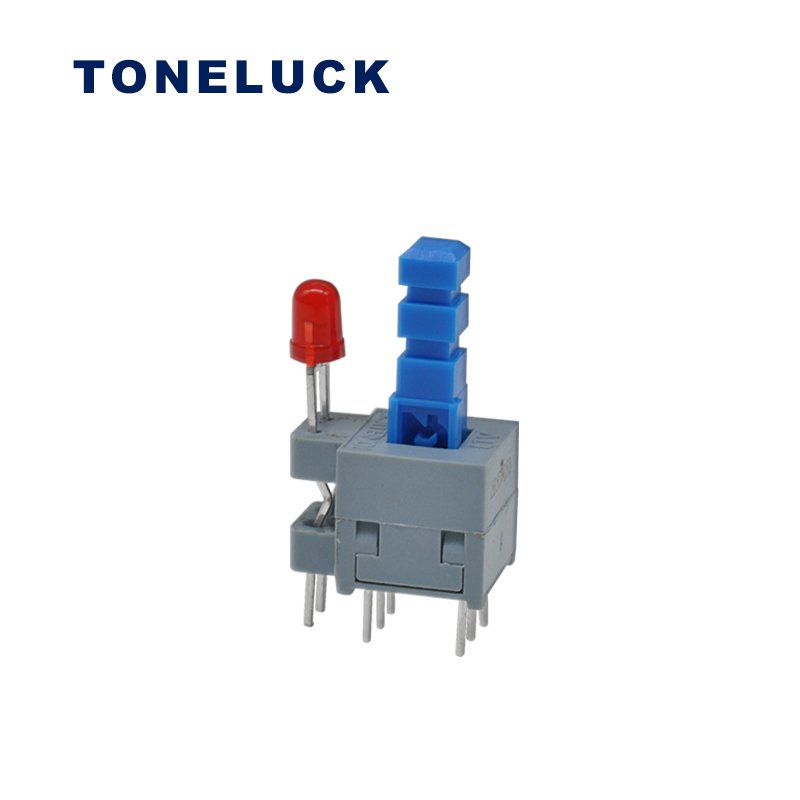

Push Button Electrical Switch Single LED Light 0.1A 30VDC
LTV Button Switch
Product name: LTV77-NN12.0-AN
Product applications: Precision instruments, industrial equipment, household appliances, etc.
Push Button Electrical Switch Single LED Light 0.1A 30VDC
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
