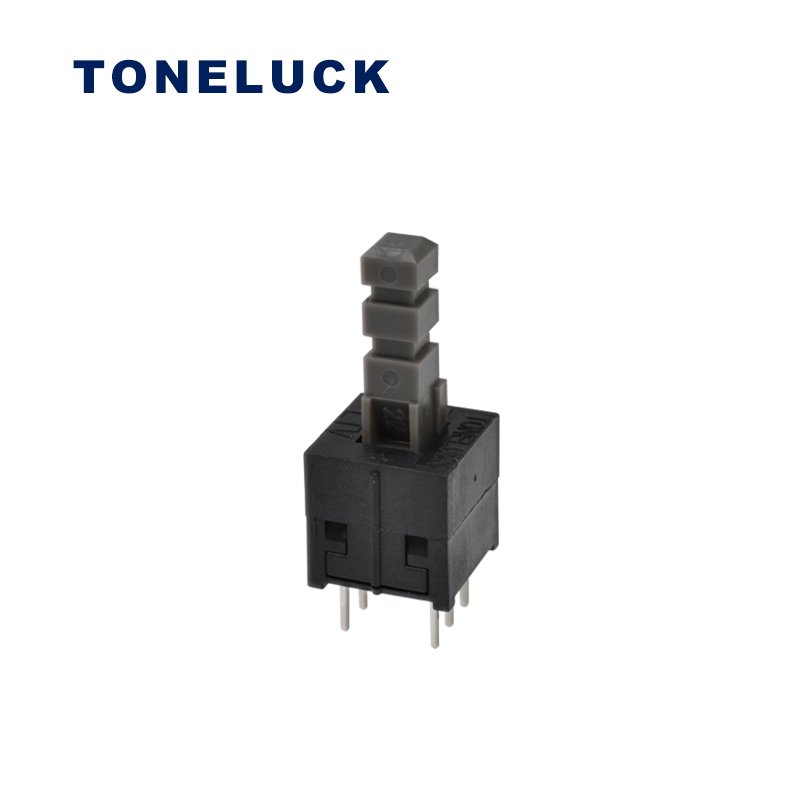

Mini Push Button Switch 2P2T Momentary 0.1A 30V DC 1A 13VDC
LTV Push Button Switch

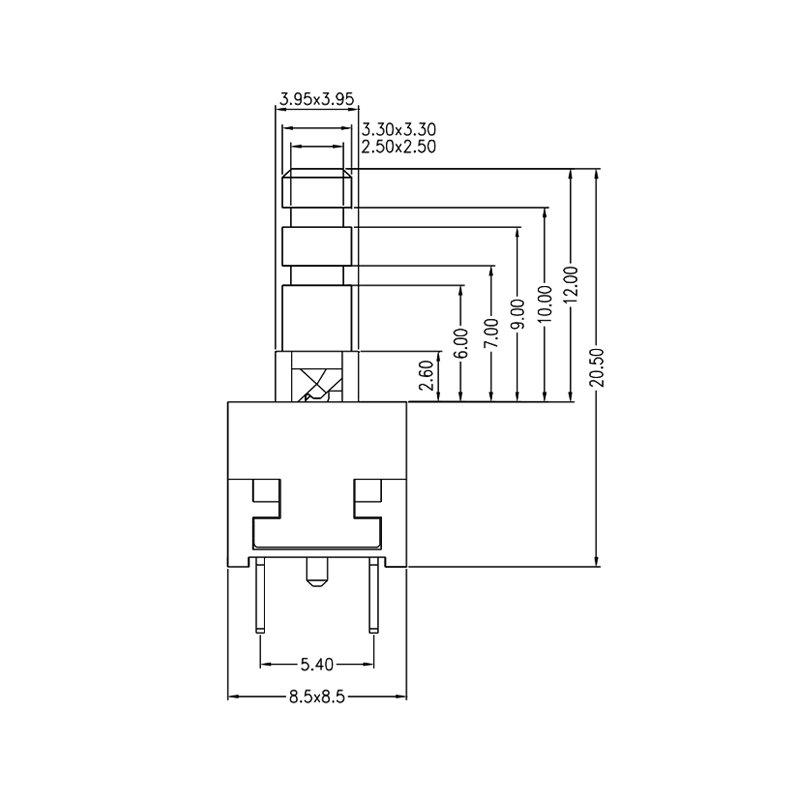

Product name: LTV-85NN12.0-CN
Product applications: Precision instruments, industrial equipment, household appliances, etc.
Mini Push Button Switch 2P2T Momentary 0.1A 30V DC 1A 13VDC
| Model No. | LTV-85NN12.0-CN |
| Operation Force (OP) | 240±50gf |
| Pre-Travel (PT) | 1.5±0.3mm |
| Total-Travel (PT) | 2.5±0.3mm |
| Switching Type | Non-short Circuit |
| Lock Type | Self-Lock |
| Temperature | -40 to 85℃ |
| Rating | 0.1A/30 VDC or 1A/13 VDC |
| Contact Resistance | 50mΩ Max. |
| Insulation Resistance | 100mΩ Min. |
| Electrical Cycle | 100000 cycles in 0.1A/30VDC
2000 cycles in 1A/13VDC |
| Dielectric Strength | 500 VDC |
