25T85 Micro Switch Details Description

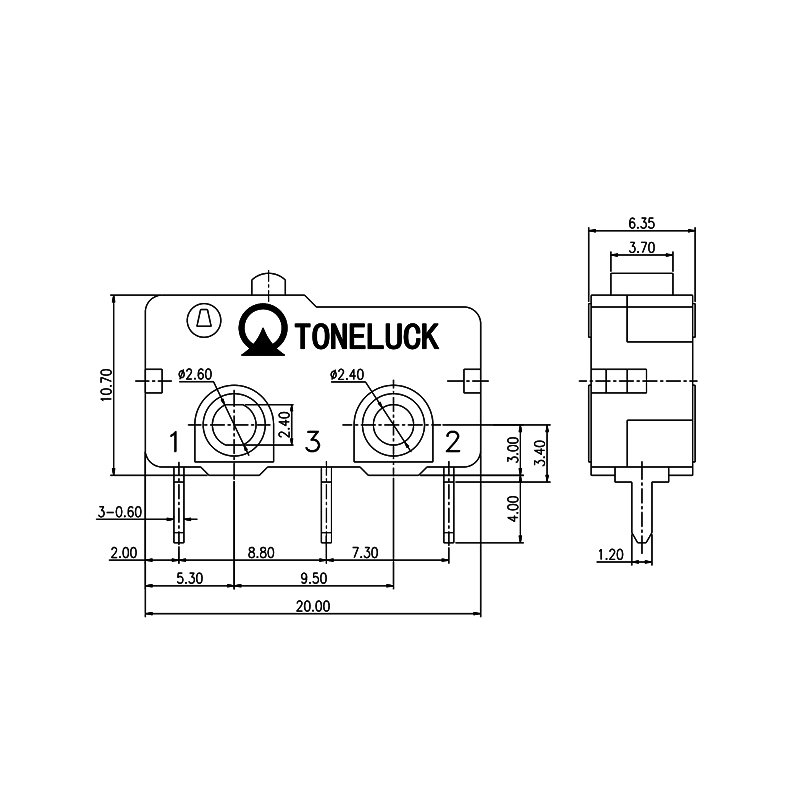

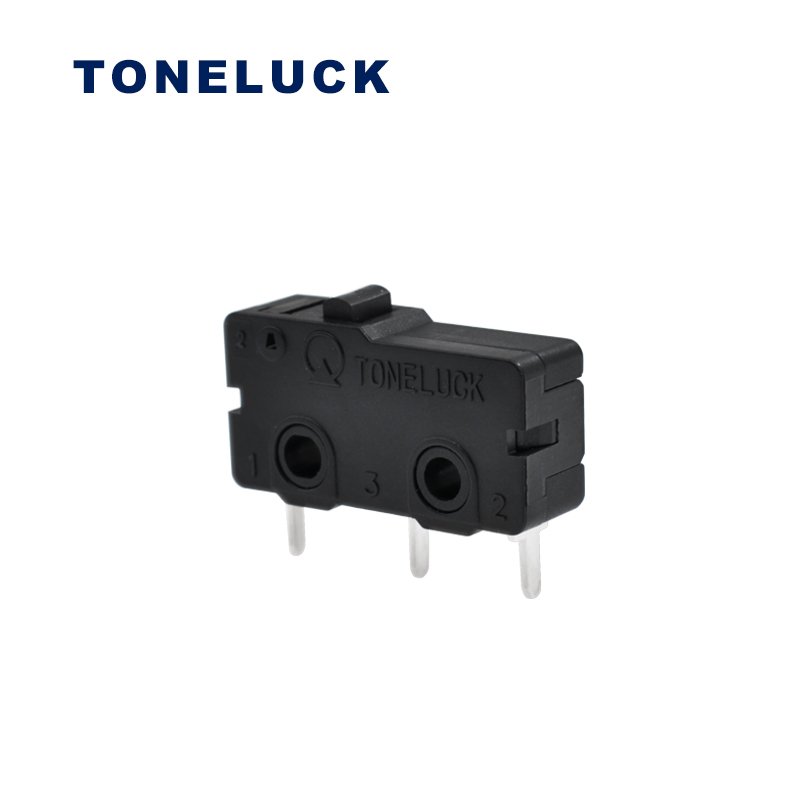

The MQS-1DAPF400-S01 micro switch’s certificated working temperature is 40T85 so it can cover the 25t85. And this model has 3 PCB pins to allow it to be installed with the Printed Circuit Board generally. However, we also can install it through its mounting hole as well, which is according to your design.
Meanwhile, the switch design can meet the requirement of IEC61058 and UL1054, which are the standard of CE and UL. And the material also meets the requirement of REACH and ROHS. Besides, the switch also has global safety(ULcUL, ENEC, CQC) certifications. Besides, we can control all the processes in our own, like the terminal and plastic shell production. This is why our microswitch products quality are good, which is better than most of same switches on the market in China.
MQS-D Switch Specification
| Electrical Rating | MQS-1DAPF400-S01 |
| Operating Temp | -40℃ to +85℃ (40T85) |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 230±40gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC for 60 ± 5 sec. |
| Housing: | UL 94V-0 Thermoplastic |
