Precision Micro Switch Details Description

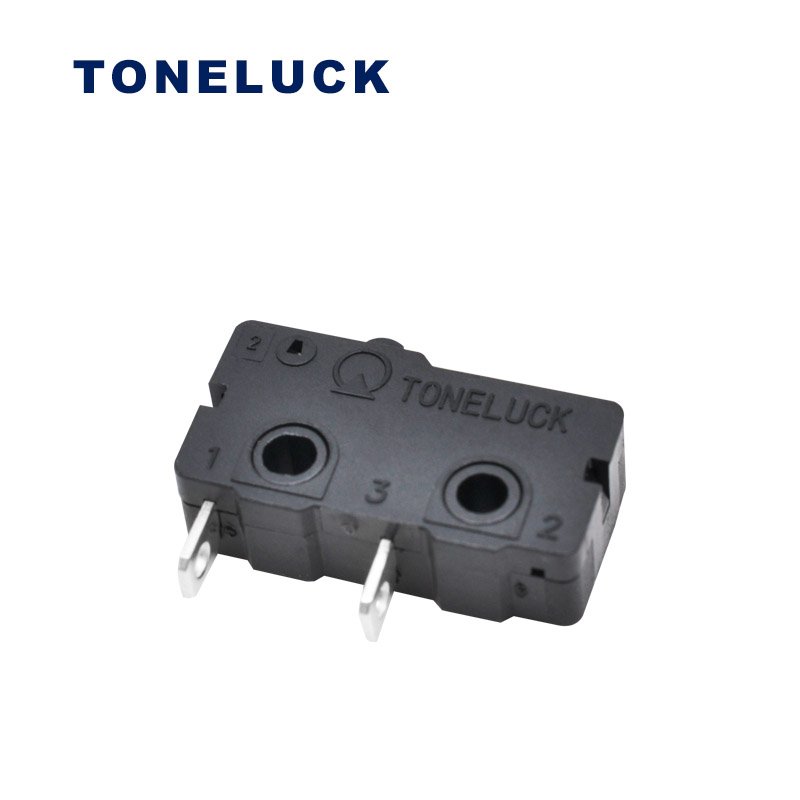

The MQS-14BAF400-S01 has a single pole single-throw circuit code with 2-pin solder terminals, and its operation position tolerance is only 0.3mm, which can be the standard of the precision micro switch. Meanwhile, this model has many safety certifications, please contact us to get them. Besides, its material also can meet the requirement of REACH and ROHS standards. With this certification, the rating of it is 10A 125/250VAC with the 40T125 working temperature range.
Generally, the MQS-14 can be used in most household appliances because it has a fireproofing function and its level is UL94-V0. All in all, the Toneluck MQS-1 series is high-quality and good-price, welcome to contact us to see more.
Precision Micro Switch Specification
| Electrical Rating | MQS-14BAF400-S01 |
| Operating Temp | -40℃ to +125℃ (40T125) |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 230±40gf |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1500VAC for 60 ± 5 sec. |
| Housing: | UL 94V-0 Thermoplastic |
