Product applications: Smart homes such as multifunctional telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

Download L Catalog

You can find this series of switches as following below, while due to some models are not listed on the website, if you can not find the microswitch you need, please feel free to contact us! We will recommend the model to you and if you need to see more of our product range, welcome to see our product page.

Model	Temperature	Contact Type	Rating	UL1054 Elife	IEC61058 Elife	IEC60335 Elife	UL858 Elife
L41	40 T 85	A1	0.1A 125/250VAC	100000	50000
L42	40 T 85	A1	5.0A 125/250VAC	100000
			5(1)A 250VAC		50000
L50	40 T 105	A2	0.1A 125/250VAC	100000	100000
			0.1A 30VDC
L51	40 T 105	A1	0.1A 125/250VAC	100000	50000
			0.1A 30VDC

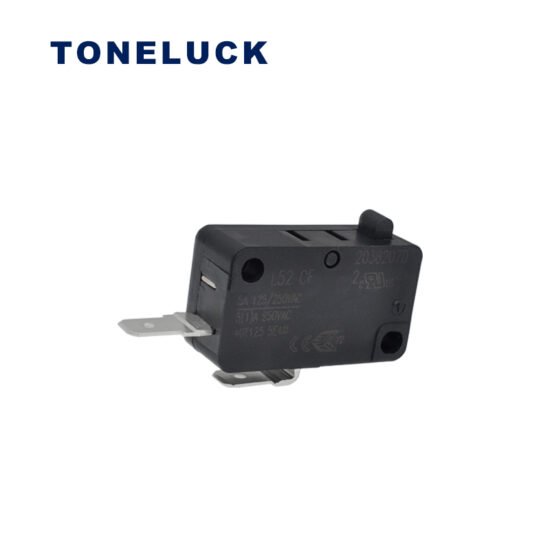

L52	40T125	A1	5.0A 125/250VAC	100000
			5(1)A 250VAC		50000
L53	40 T 85	A1	0.1A 125/250VAC		50000	Yes
L54	40T125	A1	5.0A 125/250VAC		50000	Yes
L61	40T150	A1	0.1A 125/250VAC	100000			6000+94000
			2A 125/250VAC
			0.1A 30VDC	6000
		A2	0.1A 125/250VAC		100000
			0.1A 30VDC		100000
L62	40T150	A1	5A 125/250VAC		100000		6000+94000
L71	40T200	A1	0.1A 125/250VAC		6000
			0.1A 30VDC		6000
			1A 30VDC		6000
L72	40T200	A1	5A 125/250VAC		100000
			0.1A 30VDC		6000
			1A 30VDC		6000
L91	40T220	A1	0.1A 125/250VAC	100000			6000+94000
L92	40T220	A1	5A 125/250VAC	100000			6000+94000
