Name: Toneluck S22 Micro Switch SPST Soldering Pin
Brand: Toneluck
Availability: InStock

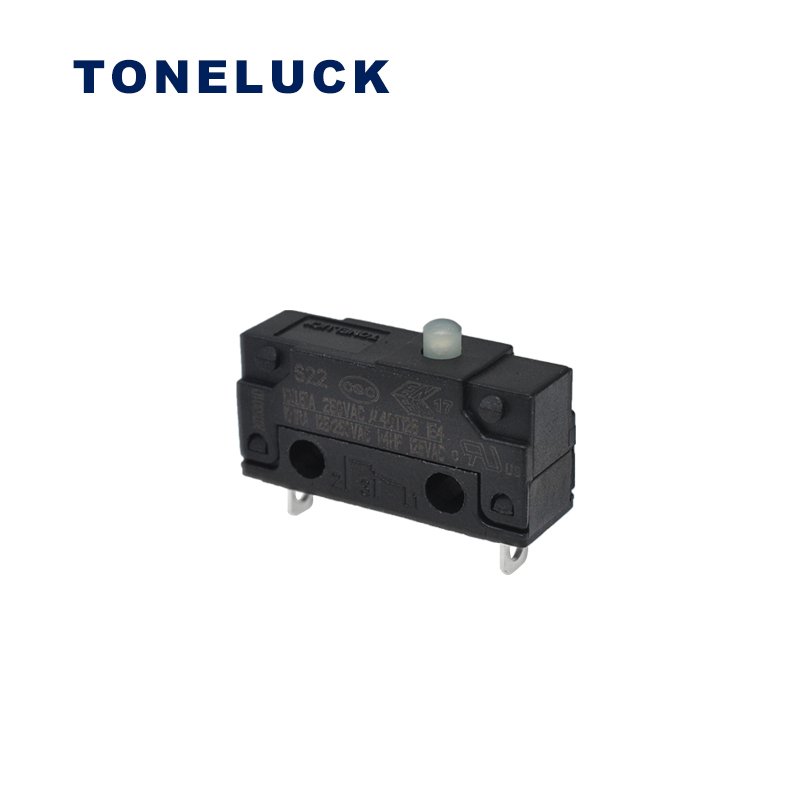

Toneluck S22 Micro Switch SPST Soldering Pin

Toneluck S22 Micro Switch SPST Soldering Pin 10A 250V 40T125

S22 series micro switch
Product name: S22BS00-S01
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

Toneluck S22 Micro Switch SPST Soldering Pin 10A 250V 40T125

Model No.	S22BS00-S01
Operating Temperature	-40℃ to +125℃
Rating	10.1RA 250VAC 1/4HP 125VAC (UL, CUL) 6000 cycles Min. 10(1.5)A 250VAC (ENEC, CQC) 10000 cycles Min.
Mechanical Life	500,000 cycles Min.
Insulation Resistance	100ΩM Min.
Dielectric Strength	500VAC (50~60HZ)
Operation Force (OP)	250gf Max.
Release Force (RP)	50gf Min.
Pre-Travel (PT)	1.00mm Max.
Movement-Differential (DT)	0.3mm Max.
Operation Position (OP)	8.40±0.3 0mm
Total TP (TTP)	1.00mm Max.
Free Position(FP)	9.3mm Max.

Toneluck S22 Micro Switch SPST Soldering Pin
