Details Description

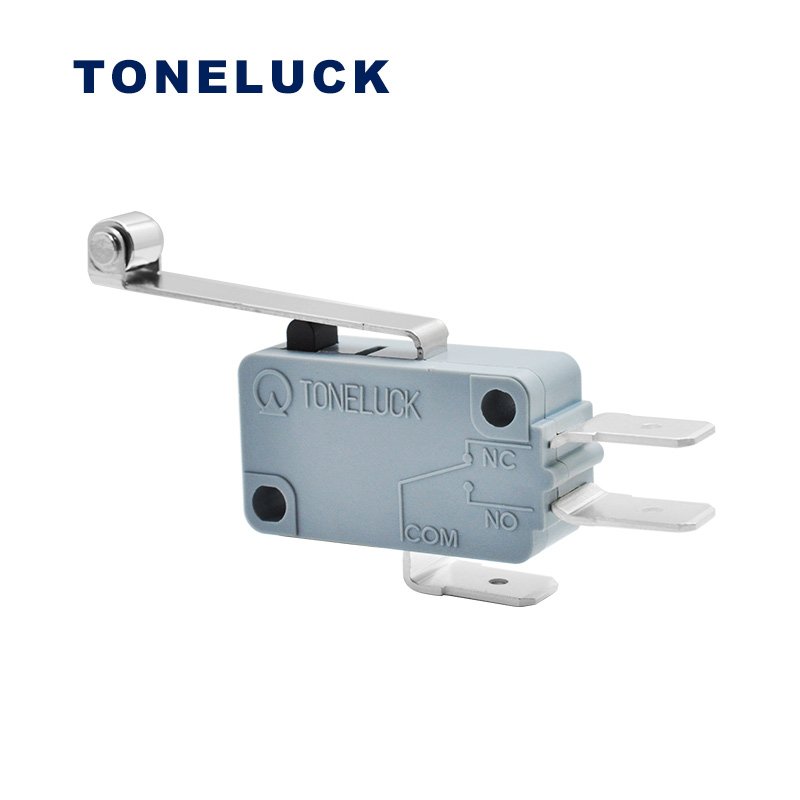

The MQS-216SA05AAM roller lever microswitch is a switch with the certificated rating “16A 125/250VAC; 1/2HP 125VAC; 3/4HP 250VAC; and 0.4A 125VDC; 0.2A 250VDC;10.1A 125VL” which is approved by the UL, cUL, ENEC, and CQC. So, we can use this switch in many products, such as the household appliances, entertainment equipment, etc.
Besides, we as well as can provide project help, free sample test, and switch parameters selection. Which can help you in your project process, welcome to contact us.
Specification
| Model No. | MQS-216SA05AAM |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC;1/2HP 125VAC;3/4HP 250VAd
0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16 (4)A 125/250VAC |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | With a Roller Lever |
| Operation Force (OP) | 65±25gf |
| Release Force (RP) | 20gf Min. |
| Pre-Travel (PT) | 4.5mm Max. |
| Over- Travel (OT) | 3mm Min. |
| Movement-Differential (DT) | 1.5mm Max. |
| Operation Position (OP) | 10.2±0.3 mm |
| Total TP (TTP) | 9.5mm Max. |
| Free Position(FP) | 18.5mm Max. |
