Details Description

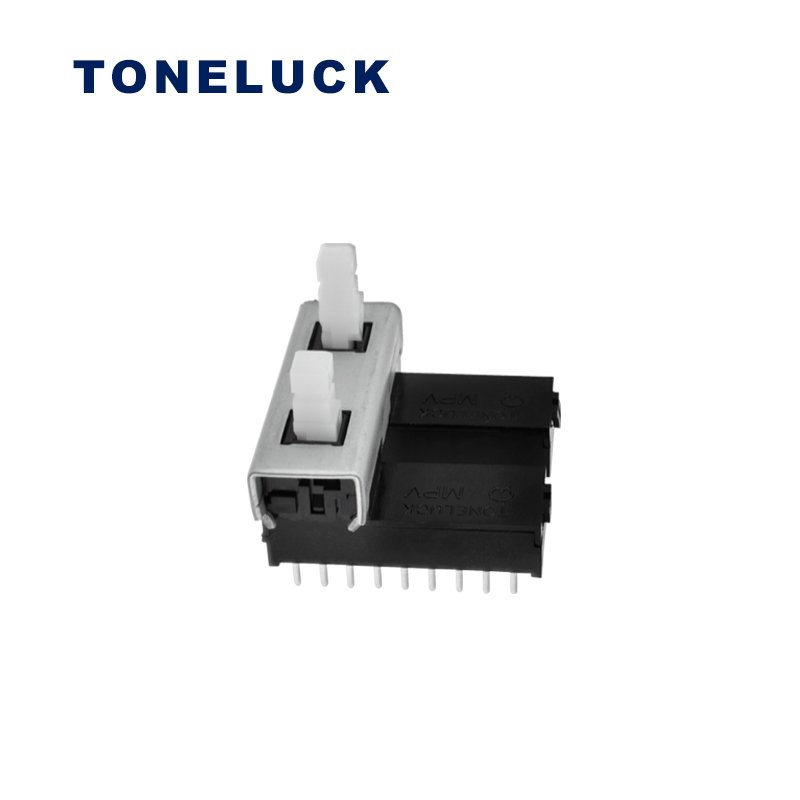

Firstly, the MPV-2-15C-0060 is a low voltage button switch certificated by UL/cUL, ENEC, CQC under the 0.1A 30VDC. So that it can be used in most of the direct voltage products. Such as automotive parts, handle tools, portable electric appliances, and so on. Meanwhile, it has 2, 4, 6 poles for options.
Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
