Details Description

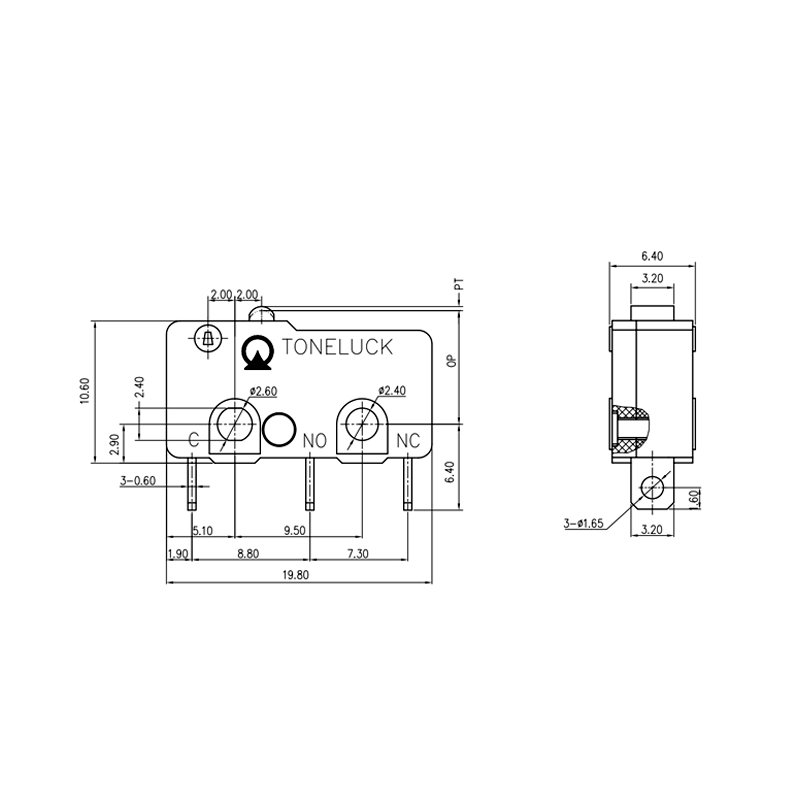

S12AAF200-S01 is SPDT 2A 30VDC or 5A 125/250VAC 3 solder terminal micro switch. And it is certificated by UL, cUL, ENEC & CQC with 50000 cycles. Meanwhile, the switch is in a small size of 19.8mm, which is a universal size for most devices. The operation force of this model is 100gf ±30gf but if you need other parameters, please feel free to let me know.
What’s more, the PT (Pre-travel) is 0.7mm Max., OP is 0.4mm Min. for your reference. And the temperature is from -10 to 125℃ so that the switch can use in most environment.
Specification
| Model No. | S12AAF200-S01 |
| Operating Temperature | -40℃ to +125℃ |
| Rating | 2A 30VDC Or 5A 125/250VAC (UL, cUL) 6000 cycles Min.
2A 30VDC Or 5(2.5)A 125/250VAC (ENEC) 50000 cycles Min. 2A 30VDC Or 5(2.5)A 125/250VAC (CQC) 50000 cycles Min. |
| Mechanical Life | 500,00 cycles Min. |
| Insulation Resistance | 100MΩ Min. |
| Dielectric Strength | 1000VAC（50 ~ 60HZ）
1500VAC（50 ~ 60HZ） |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OP) | 100±30gf |
| Release Force (RP) | 20gf Min. |
| Pre-Travel (PT) | 0.7mm Max. |
| Over- Travel (OT) | 0.4mm Min. |
| Movement-Differential (DT) | 0.2mm Max. |
| Operation Position (OP) | 8.4±0.3 mm |
| Free Position(FP) | 9.1mm Max. |
